MVS41 4×1 HDMI Multiviewer with Seamless Switching
The MVS41 Multiviewer is a professional-grade 4×1 HDMI video switcher and QuadView scaler designed to display up to four video sources simultaneously on a single screen. Ideal for control rooms, broadcasting, surveillance, or presentation environments, it allows for smooth and uninterrupted switching between sources—completely free of lag, black screens, or glitches.
With advanced audio support, the MVS41 includes audio output to support audio de-embedding.
Control is highly versatile with multiple options:
-

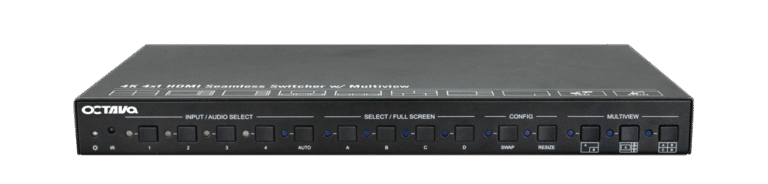

Front panel buttons for quick access
-
IR remote
-
RS-232 and LAN (IP) for integration with third-party control systems
- Seamless switch between 4 input ports
- Quadview 4 video sources on 1 single screen.

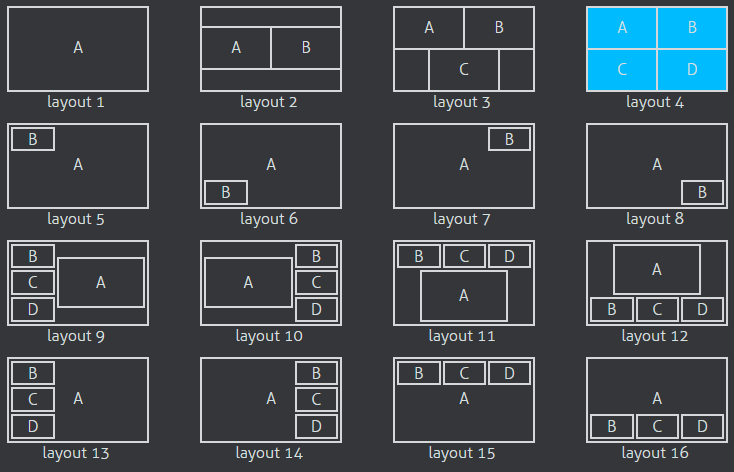

- 16 pre-defined layouts for multi-view
- Supports audio de-embedding
- Multiple control methods, including an assignable front panel, IR remote, web GUI , RS232 port and HT
Check Out Gear
Applications
Tech Specifications
Audio Input
RCA Audio Input
Input Impedance, RCA: 10 KOhm
Input Voltage, RCA: 0.9 Vp-p
Audio Output
Rated Output : 160 Vrms (135 nF load)
S/N Ratio: > 70dB
THD : <0.05 @ 75% Rated Output
Output Frequency min: 250 Hz-16 kHz
Audio Footprint
4.2 x 4x2 ft (1.3 m x 1.3 m)
Powering
External Power Supply 24VDC, 2.5 A
Accessories (Included)
Remote Control
Wall mounting bracketsl
Dimensions
23.7 x 23.7 x 2.15 Inches ( 60 x 60 x 5.5 cm) Length x Width x Height
Weight: 5.5 lbs ( 3.4 KG)
Operational Conditions
Temperature Range 0°C - 40°C (32°F - 72°F)
ORDER
Octava MVS41 Seamless Multiviewer HDMI Switch
$899
